Button Bumpers
DESCRIPTION
Button bumpers (catch bumpers) are an easy way to affix cushioning to products and equipment. These bumpers are attached without need for screws or other fasteners – the one-way “catch” end of the bumper is simply inserted into an appropriately-sized hole. ESTCO carries hundreds of button bumpers made from multiple materials. We also provide custom button bumpers as necessary.
FEATURES:
Flexible shutters adjust to accommodate and support any shape from .125˝ (3,2 mm) to a maximum diameter of 2.470″ (62,7 mm).
Absorbs vibration and cushions and insulates cables, tubing, hoses or shafts with limited internal clearance.
Fingertip pressure snap-locks the bushing into its mounting hole.

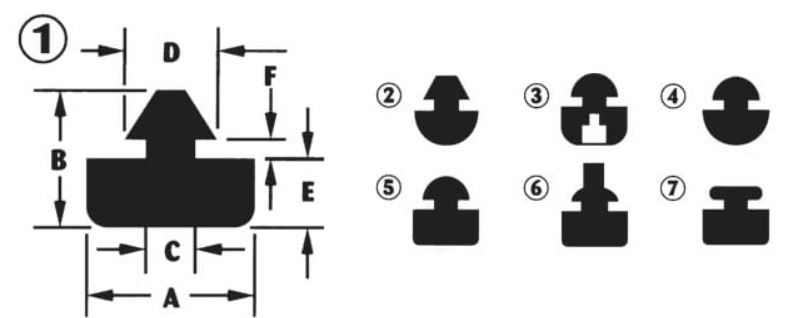

| Part No. | Fig No. | A (in) | A (in) | A (mm) | B (in) | B (in) | B (mm) | C (in) | C (in) | C (mm) | D (in) | D (in) | D (mm) | E (in) | E (in) | E (mm) | F (in) | F (in) | F (mm) | Special |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4273 | 5 | 15/64 | 0.234 | 6 | 11/64 | 0.165 | 4.2 | 1/8 | 0.125 | 3.2 | 7/32 | 0.218 | 5.6 | 1/32 | 0.031 | 0.8 | 3/32 | 0.094 | 2.4 | |
| 2618 | 2 | 13/64 | 0.2 | 5.1 | 11/64 | 0.165 | 4.2 | 1/16 | 0.062 | 0.7 | 1/64 | 0.1 | 2.6 | 3/64 | 0.048 | 1.2 | 5/64 | 0.07 | 1.8 | |
| 3161 | 5 | 5/16 | 0.313 | 7.9 | 3/16 | 0.188 | 4.8 | 1/8 | 0.125 | 3.2 | 3/16 | 0.188 | 4.8 | 3/64 | 0.047 | 1.2 | 1/32 | 0.031 | 0.8 | |
| 2963 | 6 | 3/8 | 0.378 | 9.6 | 1/2 | 0.5 | 12.7 | 11/64 | 0.169 | 4.3 | 15/64 | 0.228 | 5.9 | 1/16 | 0.059 | 1.5 | 3/64 | 0.04 | 1 | |
| 3058 | 1 | 17/32 | 0.531 | 13.5 | 17/64 | 0.266 | 6.8 | 15/64 | 0.234 | 6 | 19/64 | 0.297 | 7.5 | 1/16 | 0.063 | 1.6 | 3/64 | 0.047 | 1.2 | |
| 3066 | 7 | 3/8 | 0.375 | 9.5 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 1/16 | 0.063 | 1.6 | 1/16 | 0.063 | 1.6 | |
| 3169 | 1 | 3/8 | 0.375 | 9.5 | 1/4 | 0.25 | 6.4 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 1/16 | 0.063 | 1.6 | 5/64 | 0.07 | 1.8 | |
| 3171 | 1 | 1/2 | 0.5 | 12.7 | 17/64 | 0.266 | 6.7 | 9/32 | 0.281 | 7.1 | 3/8 | 0.375 | 9.5 | 1/16 | 0.063 | 1.6 | 3/64 | 0.047 | 1.1 | |
| 2682 | 1 | 1/2 | 0.5 | 12.7 | 19/64 | 0.297 | 7.5 | 1/4 | 0.25 | 6.4 | 1/2 | 0.5 | 12.7 | 1/16 | 0.063 | 1.6 | 1/16 | 0.063 | 1.6 | |
| 2906 | 1 | 15/32 | 0.475 | 12.2 | 11/32 | 0.342 | 8.7 | 1/8 | 0.125 | 3.2 | 9/64 | 0.145 | 3.7 | 1/16 | 0.062 | 1.6 | 15/64 | 0.235 | 6 | |
| 3188 | 5 | 5/16 | 0.313 | 7.9 | 7/32 | 0.219 | 5.6 | 1/8 | 0.125 | 3.2 | 3/16 | 0.188 | 4.8 | 1/16 | 0.063 | 1.6 | 1/16 | 0.063 | 1.6 | |
| 3266 | 7 | 3/8 | 0.375 | 9.5 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 1/16 | 0.063 | 1.6 | 1/32 | 0.031 | 0.8 | |
| 2935 | 7 | 3/8 | 0.375 | 9.5 | 7/32 | 0.219 | 5.6 | 1/4 | 0.25 | 6.3 | 5/16 | 0.313 | 7.9 | 1/16 | 0.063 | 1.5 | 1/16 | 0.063 | 1.5 | |
| 3269 | 1 | 3/8 | 0.375 | 9.5 | 17/64 | 0.266 | 6.7 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 1/16 | 0.063 | 1.6 | 3/32 | 0.09 | 2.3 | |
| 4081 | 1 | 9/16 | 0.563 | 14.3 | 1/4 | 0.25 | 6.4 | 9/32 | 0.281 | 7.1 | 3/8 | 0.375 | 9.5 | 1/16 | 0.063 | 1.6 | 1/16 | 0.063 | 1.6 | |
| 4182 | 1 | 5/8 | 0.625 | 15.9 | 9/32 | 0.281 | 7.1 | 3/16 | 0.188 | 4.8 | 7/32 | 0.219 | 5.6 | 1/16 | 0.063 | 1.6 | 1/32 | 0.031 | 0.8 | |
| 2668 | 2 | 1/4 | 0.25 | 6.4 | 9/64 | 0.141 | 3.6 | 1/8 | 0.125 | 3.2 | 3/16 | 0.188 | 4.8 | 5/64 | 0.077 | 2 | 1/32 | 0.031 | 0.8 | |
| 4267 | 6 | 1/4 | 0.25 | 6.4 | 9/32 | 0.277 | 7 | 1/8 | 0.125 | 3.2 | 3/16 | 0.188 | 4.8 | 5/64 | 0.077 | 2 | 1/32 | 0.032 | 0.8 | |
| 3070 | 7 | 3/8 | 0.375 | 9.5 | 7/32 | 0.219 | 5.6 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 5/64 | 0.078 | 2 | 1/16 | 0.063 | 1.6 | |
| 3174* | 1 | 5/16 | 0.313 | 7.9 | 1/4 | 0.25 | 6.4 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 5/64 | 0.078 | 2 | 1/16 | 0.063 | 1.6 | |
| 2621 | 2 | 1/4 | 0.25 | 6.4 | 3/8 | 0.375 | 9.5 | 1/8 | 0.125 | 3.2 | 3/16 | 0.187 | 4.8 | 3/32 | 0.093 | 2.4 | 3/32 | 0.094 | 2.4 | |
| 3062 | 1 | 3/8 | 0.375 | 9.5 | 1/4 | 0.25 | 6.4 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 3/32 | 0.094 | 2.4 | 3/64 | 0.047 | 1.2 | |
| 3064 | 2 | 7/16 | 0.438 | 11.1 | 19/64 | 0.297 | 7.5 | 15/64 | 0.234 | 6 | 19/64 | 0.297 | 7.5 | 3/32 | 0.094 | 2.4 | 3/64 | 0.047 | 1.2 | |
| 3069 | S | 5/16 | 0.313 | 7.9 | 5/16 | 0.313 | 7.9 | 1/8 | 0.125 | 3.2 | 3/16 | 0.188 | 4.8 | 3/32 | 0.094 | 2.4 | 1/32 | 0.031 | 0.8 | |
| 3170 | S | 5/16 | 0.313 | 7.9 | 23/64 | 0.354 | 9 | 1/8 | 0.125 | 3.2 | 3/16 | 0.188 | 4.8 | 3/32 | 0.094 | 2.4 | 5/64 | 0.075 | 1.9 | |
| 3265 | 6 | 1/4 | 0.25 | 6.4 | 15/32 | 0.469 | 11.9 | 1/8 | 0.125 | 3.2 | 7/32 | 0.219 | 5.6 | 3/32 | 0.094 | 2.4 | 3/64 | 0.04 | 1 | |
| 4068 | 5 | 7/16 | 0.438 | 11.1 | 17/64 | 0.266 | 6.7 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 3/32 | 0.094 | 2.4 | 5/64 | 0.078 | 2 | |
| 2944 | 1 | 7/16 | 0.438 | 11.1 | 17/64 | 0.266 | 6.8 | 1/4 | 0.25 | 6.3 | 5/16 | 0.313 | 7.9 | 3/32 | 0.094 | 2.4 | 3/64 | 0.047 | 1.2 | |
| 4189 | 1 | 5/8 | 0.625 | 15.9 | 1/4 | 0.25 | 6.4 | 3/8 | 0.375 | 9.5 | 29/64 | 0.453 | 11.5 | 3/32 | 0.094 | 2.4 | 3/64 | 0.04 | 1 | |
| 4266* | 1 | 3/8 | 0.375 | 9.5 | 3/8 | 0.375 | 9.5 | 17/64 | 0.266 | 6.7 | 21/64 | 0.328 | 8.3 | 3/32 | 0.094 | 2.4 | 3/32 | 0.094 | 2.4 | |
| 4288 | 1 | 3/8 | 0.375 | 9.5 | 17/64 | 0.266 | 6.8 | 5/32 | 0.156 | 4 | 1/4 | 0.25 | 6.4 | 3/32 | 0.094 | 2.4 | 1/16 | 0.063 | 1.6 | |
| 4269 | 1 | 7/32 | 0.219 | 5.6 | 13/64 | 0.21 | 5.3 | 1/8 | 0.12 | 3 | 5/32 | 0.156 | 4 | 7/64 | 0.1 | 2.5 | 1/16 | 0.06 | 1.5 | |
| 2659 | 2 | 5/16 | 0.313 | 7.9 | 15/32 | 0.469 | 11.9 | 3/16 | 0.188 | 4.8 | 15/64 | 0.234 | 6 | 7/64 | 0.109 | 2.8 | 1/16 | 0.063 | 1.6 | |
| 1163 | 1 | 3/4 | 0.75 | 19.1 | 9/16 | 0.563 | 14.3 | 31/64 | 0.48 | 12.2 | 37/64 | 0.578 | 14.7 | 7/64 | 0.109 | 2.8 | 5/64 | 0.07 | 1.8 | |
| 3056 | 1 | 17/32 | 0.531 | 13.5 | 5/16 | 0.313 | 7.9 | 15/64 | 0.234 | 6 | 19/64 | 0.297 | 7.5 | 7/64 | 0.109 | 2.8 | 3/64 | 0.047 | 1.2 | |
| 4192* | 1 | 1/2 | 0.5 | 12.7 | 19/64 | 0.297 | 7.5 | 1/4 | 0.25 | 6.4 | 3/8 | 0.375 | 9.5 | 7/64 | 0.109 | 2.8 | 3/64 | 0.047 | 1.2 | |
| 1160 | 1 | 3/4 | 0.75 | 19.1 | 1/2 | 0.5 | 12.7 | 31/64 | 0.48 | 12.2 | 9/16 | 0.563 | 14.3 | 1/8 | 0.125 | 3.2 | 3/64 | 0.05 | 1.3 | |
| 1164 | 1 | 3/4 | 0.75 | 19.1 | 9/16 | 0.563 | 14.3 | 31/64 | 0.48 | 12.2 | 9/16 | 0.563 | 14.3 | 1/8 | 0.125 | 3.2 | 7/64 | 0.1 | 2.5 | |
| 2962 | 2 | 3/8 | 0.375 | 9.5 | 3/8 | 0.375 | 9.5 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 1/8 | 0.125 | 3.2 | 1/32 | 0.031 | 0.8 | |
| 2902 | 7 | 3/8 | 0.375 | 9.6 | 1/4 | 0.25 | 6.4 | 1/4 | 0.25 | 6.4 | 5/16 | 0.312 | 8 | 1/8 | 0.125 | 3.2 | 1/32 | 0.032 | 0.8 | |
| 2911 | 1 | 1 1/4 | 1.25 | 32 | 21/32 | 0.656 | 16.8 | 5/16 | 0.312 | 8 | 13/32 | 0.406 | 10.4 | 1/8 | 0.125 | 3.2 | 9/32 | 0.281 | 7.2 | |
| 3061 | 1 | 3/8 | 0.375 | 9.5 | 9/32 | 0.281 | 7.1 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 1/8 | 0.125 | 3.2 | 3/64 | 0.047 | 1.2 | |
| 3065 | 2 | 7/16 | 0.438 | 11.1 | 11/32 | 0.344 | 8.7 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 1/8 | 0.125 | 3.2 | 1/16 | 0.063 | 1.6 | |
| 3072 | 1 | 1/2 | 0.5 | 12.7 | 21/64 | 0.328 | 8.3 | 9/32 | 0.281 | 7.1 | 3/8 | 0.375 | 9.5 | 1/8 | 0.125 | 3.2 | 3/64 | 0.047 | 1.2 | |
| 3163 | 1 | 7/16 | 0.437 | 11.2 | 19/64 | 0.296 | 7.6 | 1/4 | 0.25 | 6.4 | 5/16 | 0.312 | 8 | 1/8 | 0.125 | 3.2 | 3/64 | 0.046 | 1.1 | |
| 3164* | S** | 7/16 | 0.437 | 11.1 | 19/64 | 0.297 | 7.5 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 1/8 | 0.125 | 3.2 | 1/16 | 0.063 | 1.6 | |
| 3166 | 7 | 3/8 | 0.375 | 9.5 | 5/16 | 0.313 | 8 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 1/8 | 0.125 | 3.2 | 1/8 | 0.125 | 3.2 | |
| 3173* | 1 | 1/2 | 0.5 | 12.7 | 7/16 | 0.438 | 11.1 | 3/16 | 0.188 | 4.8 | 17/64 | 0.266 | 6.8 | 1/8 | 0.125 | 3.2 | 3/64 | 0.05 | 1.3 | |
| 3175 | 7 | 3/8 | 0.375 | 9.5 | 1/4 | 0.25 | 6.4 | 1/4 | 0.25 | 6.4 | 3/8 | 0.375 | 9.5 | 1/8 | 0.125 | 3.2 | 1/16 | 0.063 | 1.6 | |
| 3176 | 1 | 3/8 | 0.375 | 9.5 | 13/32 | 0.406 | 10.3 | 1/4 | 0.25 | 6.4 | 9/32 | 0.281 | 7.1 | 1/8 | 0.125 | 3.2 | 3/64 | 0.047 | 1.2 | |
| 3177 | 7 | 3/8 | 0.375 | 9.5 | 1/4 | 0.25 | 6.4 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 1/8 | 0.125 | 3.2 | 1/32 | 0.031 | 0.8 | |
| 3178 | 1 | 3/8 | 0.375 | 9.5 | 13/32 | 0.406 | 10.3 | 1/4 | 0.25 | 6.4 | 19/64 | 0.297 | 7.5 | 1/8 | 0.125 | 3.2 | 1/16 | 0.063 | 1.6 | |
| 3179* | 1 | 3/8 | 0.375 | 9.5 | 25/64 | 0.391 | 9.9 | 11/64 | 0.172 | 4.4 | 1/4 | 0.25 | 6.4 | 1/8 | 0.125 | 3.2 | 7/64 | 0.109 | 2.8 | |
| 3264* | S** | 7/16 | 0.438 | 11.1 | 7/64 | 0.109 | 6.7 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 1/8 | 0.125 | 3.2 | 3/64 | 0.04 | 1 | |
| 4061 | 1 | 3/8 | 0.375 | 9.5 | 5/16 | 0.313 | 7.9 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 1/8 | 0.125 | 3.2 | 1/16 | 0.063 | 1.6 | |
| 4062 | 1 | 3/8 | 0.375 | 9.5 | 5/16 | 0.313 | 7.9 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 1/8 | 0.125 | 3.2 | 1/16 | 0.063 | 1.6 | |
| 4063 | 2 | 3/8 | 0.375 | 9.5 | 1/4 | 0.25 | 6.4 | 5/32 | 0.156 | 4 | 1/4 | 0.25 | 6.4 | 1/8 | 0.125 | 3.2 | 1/16 | 0.063 | 1.6 | |
| 4065* | 2 | 3/8 | 0.375 | 9.5 | 7/16 | 0.438 | 11.1 | 3/16 | 0.188 | 4.8 | 17/64 | 0.266 | 6.7 | 1/8 | 0.125 | 3.2 | 3/64 | 0.047 | 1.2 | |
| 4066 | S | 7/16 | 0.438 | 11.1 | 1/2 | 0.5 | 12.7 | 1/4 | 0.25 | 6.4 | 3/8 | 0.375 | 9.5 | 1/8 | 0.125 | 3.2 | 1/16 | 0.063 | 1.6 | |
| 4067 | 2 | 7/16 | 0.438 | 11.1 | 21/64 | 0.328 | 8.3 | 15/64 | 0.234 | 6 | 9/32 | 0.281 | 7.1 | 1/8 | 0.125 | 3.2 | 3/64 | 0.047 | 1.2 | |
| 4071 | 1 | 1/2 | 0.5 | 12.7 | 3/8 | 0.375 | 9.5 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 1/8 | 0.125 | 3.2 | 1/16 | 0.063 | 1.6 | |
| 4078 | 1 | 1/2 | 0.5 | 12.7 | 13/32 | 0.406 | 10.3 | 1/4 | 0.25 | 6.4 | 3/8 | 0.375 | 9.5 | 1/8 | 0.125 | 3.2 | 1/16 | 0.063 | 1.6 | |
| 4083 | 7 | 5/8 | 0.625 | 15.9 | 9/32 | 0.281 | 7.1 | 13/32 | 0.406 | 10.3 | 17/32 | 0.531 | 13.5 | 1/8 | 0.125 | 3.2 | 3/32 | 0.094 | 2.4 | |
| 4161 | 1 | 3/8 | 0.375 | 9.5 | 11/32 | 0.344 | 8.7 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 1/8 | 0.125 | 3.2 | 3/32 | 0.094 | 2.4 | |
| 2938 | 5 | 9/16 | 0.563 | 14.2 | 23/64 | 0.359 | 9.2 | 9/32 | 0.281 | 7.2 | 3/8 | 0.375 | 9.5 | 1/8 | 0.125 | 3.1 | 5/64 | 0.078 | 2 | |
| 4168 | 1 | 1/2 | 0.5 | 12.7 | 5/16 | 0.313 | 7.9 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 1/8 | 0.125 | 3.2 | 3/64 | 0.047 | 1.2 | |
| 4184 | 1 | 5/8 | 0.625 | 15.9 | 11/32 | 0.344 | 8.7 | 15/64 | 0.234 | 6 | 5/16 | 0.313 | 7.9 | 1/8 | 0.125 | 3.2 | 3/64 | 0.04 | 1 | |
| 4187 | 1 | 5/8 | 0.625 | 15.9 | 5/16 | 0.313 | 7.9 | 5/16 | 0.313 | 7.9 | 7/16 | 0.438 | 11.1 | 1/8 | 0.125 | 3.2 | 3/64 | 0.047 | 1.2 | |
| 4193 | 1 | 1/2 | 0.5 | 12.7 | 5/16 | 0.313 | 7.9 | 3/8 | 0.375 | 9.5 | 33/64 | 0.516 | 13.1 | 1/8 | 0.125 | 3.2 | 1/16 | 0.063 | 1.6 | |
| 4194* | 1 | 1/2 | 0.5 | 12.7 | 1/2 | 0.5 | 12.7 | 1/4 | 0.25 | 6.4 | 25/64 | 0.391 | 9.9 | 1/8 | 0.125 | 3.2 | 1/4 | 0.25 | 6.4 | |
| 4263 | 6 | 3/8 | 0.38 | 9.7 | 23/32 | 0.72 | 18.3 | 11/64 | 0.17 | 4.3 | 17/64 | 0.27 | 6.9 | 1/8 | 0.125 | 3.2 | 3/64 | 0.05 | 1.3 | |
| 4268*** | 1 | 1/2 | 0.5 | 12.7 | 27/32 | 0.844 | 21.4 | 11/32 | 0.348 | 8.8 | 7/16 | 0.438 | 11.1 | 1/8 | 0.125 | 3.2 | 17/32 | 0.531 | 13.5 | |
| 2949 | 5 | 1/2 | 0.5 | 12.7 | 11/32 | 0.344 | 8.8 | 1/4 | 0.25 | 6.3 | 5/16 | 0.313 | 7.9 | 1/8 | 0.125 | 3.1 | 1/8 | 0.125 | 3.1 | |
| 4271 | 1 | 1/2 | 0.5 | 12.7 | 13/32 | 0.406 | 10.3 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 1/8 | 0.125 | 3.2 | 3/32 | 0.094 | 2.4 | |
| 2959 | 5 | 17/32 | 0.531 | 13.6 | 13/32 | 0.406 | 10.4 | 1/4 | 0.25 | 6.3 | 11/32 | 0.344 | 8.8 | 1/8 | 0.125 | 3.1 | 1/8 | 0.125 | 3.1 | |
| 4279* | 2 | 1/2 | 0.5 | 12.7 | 1/2 | 0.5 | 12.7 | 3/32 | 0.09 | 2.3 | 11/32 | 0.344 | 8.7 | 1/8 | 0.125 | 3.2 | 1/16 | 0.063 | 1.6 | |
| 2640* | 1 | 7/8 | 0.875 | 22.2 | 1/2 | 0.5 | 12.7 | 17/32 | 0.531 | 13.6 | 11/16 | 0.688 | 17.5 | 1/8 | 0.125 | 3.2 | 3/64 | 0.047 | 1.2 | |
| 3189* | 2 | 7/16 | 0.438 | 11.1 | 11/32 | 0.344 | 8.7 | 7/32 | 0.219 | 5.6 | 9/32 | 0.281 | 7.1 | 9/64 | 0.141 | 3.6 | 1/16 | 0.063 | 1.6 | |
| 4283 | 6 | 9/16 | 0.563 | 14.3 | 9/16 | 0.563 | 14.3 | 1/4 | 0.25 | 6.4 | 3/8 | 0.375 | 9.5 | 9/64 | 0.141 | 3.6 | 1/16 | 0.063 | 1.6 | |
| 2583 | 1 | 1/2 | 0.5 | 12.7 | 3/8 | 0.375 | 9.5 | 1/4 | 0.25 | 6.4 | 23/64 | 0.35 | 8.9 | 5/32 | 0.15 | 3.8 | 1/16 | 0.063 | 1.6 | |
| 2649 | 2 | 13/16 | 0.813 | 20.6 | 5/16 | 0.312 | 8 | 1/4 | 0.25 | 6.4 | 5/16 | 0.312 | 8 | 5/32 | 0.15 | 3.8 | 1/32 | 0.03 | 0.8 | |
| 306 | 3 | 3/8 | 0.375 | 9.5 | 17/64 | 0.266 | 6.7 | 3/16 | 0.188 | 4.8 | 17/64 | 0.266 | 6.7 | 5/32 | 0.156 | 4 | 3/64 | 0.04 | 1 | |
| 1166 | 1 | 3/4 | 0.75 | 19.1 | 11/32 | 0.344 | 8.7 | 23/64 | 0.365 | 9.3 | 9/16 | 0.563 | 14.3 | 5/32 | 0.156 | 4 | 5/64 | 0.078 | 2 | |
| 2607 | 6 | 1/2 | 0.5 | 12.7 | 1 1/8 | 1.125 | 28.8 | 1/4 | 0.25 | 6.4 | 11/32 | 0.344 | 8.7 | 5/32 | 0.156 | 4 | 1/8 | 0.125 | 3.2 | |
| 2633 | 6 | 1/2 | 0.5 | 12.7 | 1 1/8 | 1.125 | 20.6 | 1/4 | 0.25 | 6.4 | 11/32 | 0.344 | 8.7 | 5/32 | 0.156 | 4 | 1/8 | 0.125 | 3.2 | |
| 3074* | 1 | 1/2 | 0.5 | 12.7 | 7/16 | 0.438 | 11.1 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 8 | 5/32 | 0.156 | 4 | 1/32 | 0.031 | 0.8 | |
| 3167 | 2 | 5/16 | 0.313 | 8 | 9/16 | 0.563 | 14.3 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 5/32 | 0.156 | 4 | 1/32 | 0.031 | 0.8 | |
| 4077 | 6 | 1/2 | 0.5 | 12.7 | 17/32 | 0.531 | 14.5 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 5/32 | 0.156 | 4 | 3/32 | 0.094 | 2.4 | |
| 4085 | 1 | 9/16 | 0.563 | 14.3 | 5/16 | 0.313 | 8 | 11/32 | 0.344 | 8.7 | 27/64 | 0.422 | 10.7 | 5/32 | 0.156 | 4 | 1/16 | 0.063 | 1.6 | |
| 4086 | 6 | 5/8 | 0.625 | 15.9 | 1 1/16 | 1.063 | 27 | 19/64 | 0.297 | 7.5 | 3/8 | 0.375 | 9.5 | 5/32 | 0.156 | 4 | 3/64 | 0.047 | 1.2 | |
| 4162 | 1 | 3/8 | 0.375 | 9.5 | 11/32 | 0.344 | 8.8 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 8 | 5/32 | 0.156 | 4 | 1/16 | 0.063 | 1.6 | |
| 4177 | 6 | 1/2 | 0.5 | 12.7 | 1/2 | 0.5 | 12.7 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 5/32 | 0.156 | 4 | 1/32 | 0.031 | 0.8 | |
| 4188 | 6 | 5/8 | 0.625 | 15.9 | 1 1/8 | 1.125 | 28.6 | 19/64 | 0.297 | 7.5 | 3/8 | 0.375 | 9.5 | 5/32 | 0.156 | 4 | 1/8 | 0.125 | 3.2 | |
| 4277 | 6 | 1/2 | 0.5 | 12.7 | 5/8 | 0.625 | 15.9 | 11/64 | 0.172 | 4.4 | 1/4 | 0.25 | 6.4 | 5/32 | 0.156 | 4 | 1/32 | 0.031 | 0.8 | |
| 4286 | 5 | 1/2 | 0.5 | 12.7 | 11/32 | 0.344 | 8.8 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 5/32 | 0.156 | 4 | 1/16 | 0.063 | 1.6 | |
| 2936 | 4 | 1/2 | 0.5 | 12.7 | 11/32 | 0.344 | 8.8 | 1/4 | 0.25 | 6.3 | 5/16 | 0.313 | 7.9 | 5/32 | 0.156 | 4 | 1/16 | 0.063 | 1.5 | |
| 6112 | 2 | 13/16 | 0.813 | 20.6 | 11/32 | 0.344 | 8.8 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 5/32 | 0.156 | 4 | 1/16 | 0.063 | 1.6 | |
| 2930* | 1 | 5/16 | 0.31 | 7.9 | 27/64 | 0.42 | 10.8 | 11/64 | 0.17 | 4.4 | 7/32 | 0.218 | 5.6 | 5/32 | 0.156 | 4 | 3/16 | 0.19 | 4.9 | |
| 2987 | 5 | 1/2 | 0.5 | 12.7 | 13/32 | 0.406 | 10.3 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 5/32 | 0.156 | 4 | 1/16 | 0.063 | 1.6 | |
| 2918* | 3 | 3/8 | 0.38 | 9.7 | 7/16 | 0.43 | 11 | 3/16 | 0.188 | 4.8 | 17/64 | 0.27 | 6.9 | 3/16 | 0.19 | 4.1 | 1/16 | 0.055 | 1.4 | |
| 3182* | 6 | 5/16 | 0.313 | 8 | 13/32 | 0.406 | 10.3 | 9/64 | 0.141 | 3.6 | 1/4 | 0.25 | 6.4 | 11/64 | 0.172 | 4.4 | 1/16 | 0.063 | 1.6 | |
| 4089* | 6 | 7/8 | 0.875 | 22.2 | 25/32 | 0.781 | 19.8 | 7/32 | 0.219 | 5.6 | 11/32 | 0.344 | 8.7 | 11/64 | 0.172 | 4.4 | 1/8 | 0.125 | 3.2 | |
| 3380 | 6 | 57/64 | 0.893 | 22.9 | 57/64 | 0.895 | 22.9 | 15/64 | 0.234 | 6 | 23/64 | 0.351 | 9 | 11/64 | 0.175 | 4.5 | 13/64 | 0.207 | 5.3 | |
| 2606 | 6 | 5/8 | 0.625 | 16 | 1 7/64 | 1.111 | 28.5 | 19/64 | 0.296 | 7.6 | 3/8 | 0.38 | 9.7 | 3/16 | 0.185 | 4.7 | 3/64 | 0.05 | 1.3 | |
| 406 | 3 | 3/8 | 0.375 | 9.5 | 3/8 | 0.375 | 9.5 | 3/16 | 0.188 | 4.8 | 17/64 | 0.266 | 6.7 | 3/16 | 0.188 | 4.8 | 1/16 | 0.063 | 1.6 | |
| 417 | 3 | 3/8 | 0.375 | 9.5 | 7/16 | 0.438 | 11.1 | 3/16 | 0.188 | 4.8 | 17/64 | 0.266 | 6.7 | 3/16 | 0.188 | 4.8 | 1/8 | 0.125 | 3.2 | |
| 1161 | 1 | 3/4 | 0.75 | 19.1 | 9/16 | 0.563 | 14.3 | 31/64 | 0.48 | 1.2 | 37/64 | 0.578 | 14.7 | 3/16 | 0.188 | 4.8 | 3/64 | 0.05 | 1.3 | |
| 1162 | 1 | 3/4 | 0.75 | 19.1 | 9/16 | 0.563 | 14.3 | 31/64 | 0.48 | 1.2 | 37/64 | 0.578 | 14.7 | 3/16 | 0.188 | 4.8 | 1/16 | 0.07 | 1.8 | |
| 3063 | 1 | 7/16 | 0.438 | 11.1 | 23/64 | 0.359 | 9.1 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 3/16 | 0.188 | 4.8 | 3/64 | 0.047 | 1.2 | |
| 3067* | 2 | 5/16 | 0.313 | 7.9 | 19/32 | 0.594 | 15.1 | 3/16 | 0.188 | 4.7 | 1/4 | 0.25 | 6.4 | 3/16 | 0.188 | 4.8 | 1/32 | 0.031 | 0.8 | |
| 3071 | 1 | 1/2 | 0.5 | 12.7 | 25/64 | 0.391 | 9.9 | 9/32 | 0.281 | 7.1 | 3/8 | 0.375 | 9.5 | 3/16 | 0.188 | 4.8 | 3/64 | 0.047 | 1.2 | |
| 3165 | 6 | 1/4 | 0.25 | 6.4 | 9/16 | 0.563 | 14.3 | 1/8 | 0.125 | 3.2 | 7/32 | 0.219 | 5.6 | 3/16 | 0.188 | 4.8 | 3/64 | 0.047 | 1.2 | |
| 3172 | 7 | 3/8 | 0.375 | 9.5 | 9/32 | 0.281 | 7.1 | 1/4 | 0.25 | 6.4 | 11/32 | 0.344 | 8.7 | 3/16 | 0.188 | 4.8 | 3/64 | 0.047 | 1.2 | |
| 3181 | 1 | 1/2 | 0.5 | 12.7 | 27/64 | 0.422 | 10.7 | 9/32 | 0.281 | 7.1 | 3/8 | 0.375 | 9.5 | 3/16 | 0.188 | 4.8 | 5/64 | 0.078 | 2 | |
| 3183* | 2 | 3/8 | 0.375 | 9.5 | 1/2 | 0.5 | 12.7 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 3/16 | 0.188 | 4.8 | 1/16 | 0.063 | 1.6 | |
| 3184* | 2 | 3/8 | 0.375 | 9.5 | 15/32 | 0.469 | 11.9 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 3/16 | 0.188 | 4.8 | 1/32 | 0.031 | 0.8 | |
| 3185 | 6 | 3/8 | 0.375 | 9.5 | 11/16 | 0.688 | 17.5 | 13/64 | 0.203 | 5.2 | 17/64 | 0.266 | 6.7 | 3/16 | 0.188 | 4.8 | 3/64 | 0.047 | 1.2 | |
| 3263 | 5 | 7/16 | 0.438 | 11.1 | 7/16 | 0.438 | 11.1 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 3/16 | 0.188 | 4.8 | 1/8 | 0.125 | 3.2 | |
| 4072 | 5 | 1/2 | 0.5 | 12.7 | 3/8 | 0.375 | 9.5 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 3/16 | 0.188 | 4.8 | 1/16 | 0.063 | 1.6 | |
| 4076 | 2 | 1/2 | 0.5 | 12.7 | 7/16 | 0.438 | 11.1 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 3/16 | 0.188 | 4.8 | 1/16 | 0.063 | 1.6 | |
| 4163 | 1 | 3/8 | 0.375 | 9.5 | 3/8 | 0.375 | 9.5 | 17/64 | 0.266 | 6.7 | 11/32 | 0.344 | 8.7 | 3/16 | 0.188 | 4.8 | 1/32 | 0.031 | 0.8 | |
| 4171 | 1 | 1/2 | 0.5 | 12.7 | 7/16 | 0.438 | 11.1 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 3/16 | 0.188 | 4.8 | 1/16 | 0.063 | 1.6 | |
| 4176 | 1 | 1/2 | 0.5 | 12.7 | 7/16 | 0.438 | 11.1 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 3/16 | 0.188 | 4.8 | 1/32 | 0.031 | 0.8 | |
| 4178* | 4 | 5/16 | 0.313 | 8 | 13/32 | 0.406 | 10.3 | 5/32 | 0.156 | 4 | 15/64 | 0.23 | 5.8 | 3/16 | 0.188 | 4.8 | 1/8 | 0.125 | 3.2 | |
| 4270 | 1 | 3/4 | 0.75 | 19.1 | 7/16 | 0.438 | 11.1 | 11/32 | 0.344 | 8.7 | 15/32 | 0.469 | 11.9 | 3/16 | 0.188 | 4.8 | 1/8 | 0.125 | 3.2 | |
| 4276 | 2 | 1/2 | 0.5 | 12.7 | 15/32 | 0.469 | 11.9 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 3/16 | 0.188 | 4.8 | 7/64 | 0.1 | 2.5 | |
| 4280 | 6 | 15/32 | 0.469 | 12 | 25/32 | 0.78 | 20 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 3/16 | 0.188 | 4.8 | 1/16 | 0.063 | 1.6 | |
| 4281 | 6 | 3/8 | 0.375 | 9.5 | 11/16 | 0.688 | 17.5 | 3/16 | 0.188 | 4.8 | 9/32 | 0.281 | 7.1 | 3/16 | 0.188 | 4.8 | 3/64 | 0.05 | 1.3 | |
| 6113 | 1 | 3/4 | 0.75 | 19.1 | 3/4 | 0.75 | 19.1 | 1/4 | 0.25 | 6.4 | 3/8 | 0.375 | 9.5 | 3/16 | 0.188 | 4.8 | 1/16 | 0.063 | 1.6 | |
| 2647 | 7 | 3/8 | 0.375 | 9.5 | 19/64 | 0.297 | 7.5 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 8 | 3/16 | 0.188 | 4.8 | 1/16 | 0.063 | 1.6 | |
| 2969 | 4 | 1 | 1 | 25.4 | 7/16 | 0.438 | 11.1 | 1/2 | 0.5 | 12.7 | 5/8 | 0.625 | 15.9 | 3/16 | 0.188 | 4.8 | 1/8 | 0.125 | 3.2 | |
| 3187 | 5 | 3/8 | 0.375 | 9.5 | 21/64 | 0.328 | 8.3 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 13/64 | 0.203 | 5.2 | 1/32 | 0.031 | 0.8 | |
| 4285 | 6 | 7/16 | 0.438 | 11.1 | 57/64 | 0.891 | 22.6 | 15/64 | 0.234 | 5.6 | 5/16 | 0.313 | 8 | 13/64 | 0.203 | 5.2 | 1/32 | 0.038 | 0.9 | |
| 3168 | 1 | 3/8 | 0.375 | 9.5 | 15/32 | 0.469 | 11.9 | 15/64 | 0.234 | 5.6 | 19/64 | 0.297 | 7.5 | 7/32 | 0.219 | 5.6 | 1/16 | 0.063 | 1.6 | |
| 4262 | 1 | 3/8 | 0.375 | 9.5 | 13/32 | 0.406 | 10.3 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 7/32 | 0.219 | 5.6 | 1/16 | 0.063 | 1.6 | |
| 4275 | 6 | 5/8 | 0.625 | 16 | 7/8 | 0.875 | 22.4 | 7/32 | 0.218 | 5.6 | 5/16 | 0.312 | 8 | 7/32 | 0.218 | 5.6 | 3/16 | 0.187 | 4.8 | |
| 2644* | 1 | 15/32 | 0.469 | 11.9 | 1/2 | 0.5 | 12.7 | 9/32 | 0.281 | 7.1 | 3/8 | 0.375 | 9.5 | 7/32 | 0.219 | 5.6 | 1/32 | 0.031 | 0.8 | |
| 3073 | 2 | 1/2 | 0.5 | 12.7 | 25/64 | 0.391 | 9.9 | 1/4 | 0.25 | 6.4 | 11/32 | 0.344 | 8.7 | 15/64 | 0.234 | 6 | 1/32 | 0.031 | 0.8 | |
| 4179 | 1 | 1/2 | 0.5 | 12.7 | 37/64 | 0.578 | 14.7 | 1/4 | 0.25 | 6.4 | 23/64 | 0.359 | 9.1 | 15/64 | 0.234 | 6 | 1/32 | 0.031 | 0.8 | |
| 2679 | 6 | 7/32 | 0.219 | 5.6 | 7/16 | 0.447 | 11.3 | 7/64 | 0.113 | 2.9 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 1/16 | 0.06 | 1.5 | |
| 307 | 3 | 1/2 | 0.5 | 12.7 | 7/16 | 0.438 | 11.1 | 1/4 | 0.25 | 6.4 | 11/32 | 0.344 | 8.7 | 1/4 | 0.25 | 6.4 | 3/64 | 0.04 | 1 | |
| 2940 | 5 | 1/2 | 0.5 | 12.7 | 7/16 | 0.438 | 11.1 | 1/4 | 0.25 | 6.3 | 5/16 | 0.313 | 7.9 | 1/4 | 0.25 | 6.3 | 1/16 | 0.063 | 1.5 | |
| 317 | 3 | 1/2 | 0.5 | 12.7 | 1/2 | 0.5 | 12.7 | 1/4 | 0.25 | 6.4 | 11/32 | 0.344 | 8.7 | 1/4 | 0.25 | 6.4 | 1/8 | 0.125 | 3.2 | |
| 407 | 3 | 1/2 | 0.5 | 12.7 | 7/16 | 0.438 | 11.1 | 1/4 | 0.25 | 6.4 | 11/32 | 0.344 | 8.7 | 1/4 | 0.25 | 6.4 | 1/16 | 0.063 | 1.6 | |
| 611 | 1 | 7/8 | 0.875 | 22.2 | 1/2 | 0.5 | 12.7 | 5/16 | 0.313 | 7.9 | 13/32 | 0.406 | 10.3 | 1/4 | 0.25 | 6.4 | 5/64 | 0.078 | 2 | |
| 3068 | 1 | 3/8 | 0.375 | 9.5 | 7/16 | 0.438 | 11.1 | 5/32 | 0.156 | 4 | 7/32 | 0.219 | 5.6 | 1/4 | 0.25 | 6.4 | 1/32 | 0.031 | 0.8 | |
| 4082 | 1 | 5/8 | 0.625 | 15.9 | 15/32 | 0.469 | 11.9 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 1/4 | 0.25 | 6.4 | 1/32 | 0.025 | 0.6 | |
| 4084 | 1 | 5/8 | 0.625 | 15.9 | 15/32 | 0.469 | 11.9 | 1/4 | 0.25 | 6 | 5/16 | 0.313 | 7.9 | 1/4 | 0.25 | 6.4 | 3/64 | 0.04 | 1 | |
| 4088 | 1 | 5/8 | 0.625 | 15.9 | 15/32 | 0.469 | 11.9 | 5/16 | 0.313 | 7.9 | 25/64 | 0.391 | 9.9 | 1/4 | 0.25 | 6.4 | 3/64 | 0.047 | 1.2 | |
| 2931 | 6 | 1/2 | 0.5 | 12.7 | 13/16 | 0.813 | 20.8 | 1/4 | 0.25 | 6.3 | 3/8 | 0.375 | 9.5 | 1/4 | 0.25 | 6.3 | 1/8 | 0.125 | 3.1 | |
| 4167 | 1 | 1/2 | 0.5 | 12.7 | 27/64 | 0.422 | 10.7 | 9/32 | 0.281 | 7.1 | 13/32 | 0.406 | 10.3 | 1/4 | 0.25 | 6.4 | 3/64 | 0.047 | 1.2 | |
| 2661 | 1 | 1/2 | 0.5 | 12.7 | 53/64 | 0.828 | 21 | 1/4 | 0.25 | 6.4 | 11/32 | 0.344 | 8.7 | 1/4 | 0.25 | 6.4 | 5/64 | 0.078 | 2 | |
| 4180 | 6 | 15/32 | 0.469 | 11.9 | 27/32 | 0.844 | 21.4 | 1/4 | 0.25 | 6.4 | 3/8 | 0.375 | 9.5 | 1/4 | 0.25 | 6.4 | 3/64 | 0.047 | 1.2 | |
| 4185* | 1 | 5/8 | 0.625 | 15.9 | 7/16 | 0.438 | 11.1 | 1/4 | 0.25 | 6.4 | 11/32 | 0.344 | 8.7 | 1/4 | 0.25 | 6.4 | 1/16 | 0.063 | 1.6 | |
| 6111 | 1 | 7/8 | 0.875 | 22.2 | 45/64 | 0.703 | 17.9 | 5/16 | 0.313 | 7.9 | 13/32 | 0.406 | 10.3 | 1/4 | 0.25 | 6.4 | 9/32 | 0.281 | 7.1 | |
| 3362 | 1 | 33/64 | 0.51 | 13 | 41/64 | 0.635 | 16.1 | 1/4 | 0.255 | 6.5 | 11/32 | 0.351 | 8.9 | 17/64 | 0.271 | 6.9 | 1/8 | 0.125 | 3.2 | |
| 2675 | 6 | 3/16 | 0.18 | 4.6 | 29/64 | 0.447 | 11.3 | 1/8 | 0.125 | 3.2 | 3/16 | 0.18 | 4.6 | 9/32 | 0.278 | 7.1 | 3/64 | 0.045 | 1.1 | |
| 3354 | 6 | 1/2 | 0.5 | 12.7 | 15/16 | 0.938 | 23.8 | 1/4 | 0.25 | 6.4 | 1/4 | 0.25 | 6.4 | 9/32 | 0.281 | 7.1 | 13/64 | 0.2 | 5.1 | |
| 4247 | 4 | 1 | 1 | 25.4 | 17/32 | 0.537 | 13.6 | 1/2 | 0.5 | 12.7 | 5/8 | 0.625 | 15.9 | 9/32 | 0.281 | 7.1 | 1/8 | 0.125 | 3.2 | |
| 4195 | 6 | 1/2 | 0.5 | 12.7 | 15/16 | 0.938 | 23.8 | 1/4 | 0.25 | 6.4 | 23/64 | 0.359 | 9.1 | 9/32 | 0.281 | 7.1 | 13/64 | 0.2 | 5.1 | |
| 4165 | 1 | 1/2 | 0.5 | 12.7 | 7/16 | 0.438 | 11.1 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 19/64 | 0.297 | 7.5 | 1/16 | 0.063 | 1.6 | |
| 3180 | 6 | 3/8 | 0.38 | 9.7 | 41/64 | 0.64 | 16.3 | 9/64 | 0.14 | 3.6 | 1/4 | 0.25 | 6.4 | 5/16 | 0.31 | 7.9 | 1/32 | 0.03 | 0.8 | |
| 308 | 3 | 5/8 | 0.625 | 12.7 | 9/16 | 0.563 | 14.3 | 3/8 | 0.375 | 9.5 | 15/32 | 0.469 | 11.9 | 5/16 | 0.31 | 7.9 | 3/64 | 0.04 | 1 | |
| 408 | 3 | 5/8 | 0.625 | 15.9 | 9/16 | 0.563 | 14.3 | 3/8 | 0.375 | 9.5 | 15/32 | 0.469 | 11.9 | 5/16 | 0.31 | 7.9 | 1/16 | 0.063 | 1.6 | |
| 3075 | 1 | 7/16 | 0.438 | 11.1 | 5/8 | 0.625 | 15.9 | 5/16 | 0.313 | 7.9 | 13/32 | 0.406 | 10.3 | 5/16 | 0.31 | 7.9 | 1/32 | 0.031 | 0.8 | |
| 4075 | 1 | 1/2 | 0.5 | 12.7 | 9/16 | 0.563 | 14.3 | 13/64 | 0.203 | 5.2 | 1/4 | 0.25 | 6.4 | 5/16 | 0.31 | 7.9 | 1/16 | 0.063 | 1.6 | |
| 4181 | 6 | 1/2 | 0.5 | 12.7 | 61/64 | 0.953 | 24.2 | 1/4 | 0.25 | 6.4 | 3/8 | 0.375 | 9.5 | 5/16 | 0.31 | 7.9 | 1/8 | 0.125 | 3.2 | |
| 4278 | 6 | 3/8 | 0.375 | 9.5 | 25/32 | 0.781 | 19.8 | 15/64 | 0.234 | 6 | 5/16 | 0.313 | 7.9 | 5/16 | 0.31 | 7.9 | 3/64 | 0.04 | 1 | |
| 4287 | 1 | 1/2 | 0.5 | 12.7 | 9/16 | 0.563 | 14.3 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 5/16 | 0.31 | 7.9 | 9/64 | 0.141 | 3.6 | |
| 2985 | 5 | 1 | 1 | 25.4 | 11/16 | 0.688 | 17.5 | 1/2 | 0.5 | 12.7 | 11/16 | 0.688 | 17.5 | 5/16 | 0.31 | 7.9 | 3/16 | 0.188 | 4.8 | |
| 3351 | 5 | 1/2 | 0.5 | 12.7 | 37/64 | 0.581 | 14.8 | 1/4 | 0.25 | 6.4 | 3/8 | 0.375 | 9.5 | 5/16 | 0.313 | 8 | 3/32 | 0.093 | 2.4 | |
| 4183* | 1 | 9/16 | 0.563 | 14.3 | 21/32 | 0.656 | 16.7 | 1/4 | 0.25 | 6.4 | 19/64 | 0.297 | 7.5 | 23/64 | 0.359 | 9.1 | 1/32 | 0.031 | 0.8 | |
| 4265 | 6 | 3/8 | 0.38 | 9.7 | 55/64 | 0.862 | 21.9 | 15/64 | 0.23 | 5.9 | 5/16 | 0.312 | 7.9 | 23/64 | 0.36 | 9.1 | 1/16 | 0.062 | 1.6 | |
| 3186 | 6 | 5/16 | 0.313 | 7.9 | 11/16 | 0.688 | 17.5 | 1/8 | 0.125 | 3.2 | 3/16 | 0.188 | 4.8 | 3/8 | 0.375 | 9.5 | 1/16 | 0.063 | 1.6 | |
| 2663 | 1 | 1/2 | 0.5 | 12.7 | 39/64 | 0.6 | 15.4 | 13/64 | 0.203 | 5.2 | 1/4 | 0.25 | 6.4 | 3/8 | 0.375 | 9.5 | 1/16 | 0.063 | 1.6 | |
| 2688 | 2 | 1/2 | 0.5 | 12.7 | 15/16 | 0.938 | 23.8 | 1/4 | 0.25 | 6.4 | 3/8 | 0.375 | 9.5 | 3/8 | 0.375 | 9.5 | 1/8 | 0.125 | 3.2 | |
| 4087 | 1 | 5/8 | 0.625 | 15.9 | 23/32 | 0.71 | 18 | 15/64 | 0.23 | 6 | 19/64 | 0.3 | 7.6 | 3/8 | 0.38 | 9.6 | 5/64 | 0.08 | 2 | |
| 4186* | 1 | 9/16 | 0.563 | 14.3 | 11/16 | 0.688 | 17.5 | 1/4 | 0.25 | 6.4 | 11/32 | 0.344 | 8.7 | 3/8 | 0.375 | 9.5 | 1/32 | 0.031 | 0.8 | |
| 4191 | 1 | 5/8 | 0.625 | 15.9 | 3/4 | 0.75 | 19.1 | 15/64 | 0.234 | 6 | 5/16 | 0.313 | 7.9 | 3/8 | 0.375 | 9.5 | 1/8 | 0.125 | 3.2 | |
| 2601 | 1 | 9/16 | 0.563 | 14.3 | 11/16 | 0.688 | 17.5 | 1/4 | 0.25 | 6.4 | 11/32 | 0.344 | 8.7 | 3/8 | 0.375 | 9.5 | 3/64 | 0.047 | 1.2 | |
| 2671 | 2 | 3/4 | 0.75 | 19.1 | 21/32 | 0.656 | 16.7 | 5/16 | 0.32 | 8.1 | 1/2 | 0.5 | 12.7 | 3/8 | 0.375 | 9.5 | 3/64 | 0.045 | 1.1 | |
| 1165 | 6 | 7/8 | 0.875 | 22.2 | 1 1/32 | 1.031 | 26.2 | 1/4 | 0.25 | 6.4 | 13/32 | 0.406 | 10.3 | 13/32 | 0.406 | 10.3 | 5/64 | 0.078 | 2 | |
| 4264 | 1 | 3/8 | 0.375 | 9.5 | 23/32 | 0.719 | 18.4 | 1/4 | 0.25 | 6.4 | 11/32 | 0.344 | 8.7 | 1/2 | 0.5 | 12.7 | 1/16 | 0.063 | 1.6 | |
| 4164 | 1 | 3/8 | 0.375 | 9.5 | 11/16 | 0.696 | 17.8 | 17/64 | 0.266 | 6.8 | 11/32 | 0.344 | 8.7 | 1/2 | 0.5 | 12.7 | 1/32 | 0.031 | 0.8 | |
| 4166 | 5 | 7/16 | 0.438 | 11.1 | 21/32 | 0.656 | 16.7 | 1/4 | 0.25 | 6.4 | 11/32 | 0.344 | 8.7 | 1/2 | 0.5 | 12.7 | 1/32 | 0.031 | 0.8 | |
| 4272* | 1 | 1 | 1 | 25.4 | 1 | 1 | 25.4 | 3/8 | 0.375 | 9.5 | 1/2 | 0.5 | 12.7 | 1/2 | 0.5 | 12.7 | 1/8 | 0.125 | 3.2 | |
| 4282 | 6 | 1 | 1 | 25.4 | 1 3/5 | 1.6 | 40.7 | 27/64 | 0.42 | 10.7 | 9/16 | 0.563 | 14.3 | 1/2 | 0.5 | 12.7 | 1/16 | 0.063 | 1.6 | |
| 4079 | 1 | 1/2 | 0.5 | 12.7 | 29/32 | 0.906 | 23 | 1/4 | 0.25 | 6.4 | 23/64 | 0.359 | 9.1 | 9/16 | 0.563 | 14.3 | 1/16 | 0.063 | 1.6 | |
| 4190 | 6 | 1/2 | 0.5 | 12.7 | 1 10/73 | 1.137 | 29.2 | 15/64 | 0.24 | 6.2 | 3/8 | 0.38 | 9.7 | 9/16 | 0.563 | 14.3 | 7/64 | 0.109 | 2.8 | |
| 4284 | 1 | 1/2 | 0.5 | 12.7 | 1 1/64 | 1.016 | 25.8 | 1/4 | 0.25 | 6.4 | 11/32 | 0.344 | 8.7 | 11/16 | 0.688 | 17.5 | 1/16 | 0.063 | 1.6 | |
| 2689 | 2 | 1/2 | 0.5 | 12.7 | 1 1/4 | 1.25 | 31.7 | 1/4 | 0.25 | 6.4 | 3/8 | 0.375 | 9.5 | 11/16 | 0.688 | 17.5 | 1/8 | 0.125 | 3.2 | |
| 3170 | 2-I | 5/16 | 0.313 | 7.9 | 5/16 | 0.313 | 7.9 | 1/8 | 0.125 | 3.2 | 3/16 | 0.188 | 4.8 | 3/32 | 0.094 | 2.4 | 3/16 | 0.188 | 4.8 | |
| 3069 | 2-I | 5/16 | 0.313 | 7.9 | 5/16 | 0.313 | 7.9 | 1/8 | 0.125 | 3.2 | 3/16 | 0.188 | 4.8 | 3/32 | 0.094 | 2.4 | 3/16 | 0.188 | 4.8 | |
| 4066 | 3-I | 7/16 | 0.438 | 11.1 | 1/2 | 0.5 | 12.7 | 1/4 | 0.25 | 6.4 | 3/8 | 0.375 | 9.5 | 1/8 | 0.125 | 3.2 | 1/16 | 0.063 | 1.6 | |
| 4086 | 1-I | 5/8 | 0.625 | 15.9 | 1 1/16 | 1.063 | 27 | 5/8 | 0.625 | 15.9 | 3/8 | 0.375 | 9.5 | 5/32 | 0.156 | 4 | 3/64 | 0.047 | 1.2 | |
| 2432 | 1-I | 3/4 | 0.75 | 19.1 | 4/5 | 0.8 | 20.3 | 12/25 | 0.48 | 12.2 | 29/50 | 0.58 | 14.7 | 3/8 | 0.375 | 9.5 | 1/20 | 0.05 | 1.3 | |
| 2542 | 6-I | 8/25 | 0.32 | 8.1 | 23/25 | 0.92 | 23.4 | 4/25 | 0.16 | 4.1 | 7/25 | 0.28 | 7.1 | 9/25 | 0.36 | 9.1 | 1/16 | 0.063 | 1.6 | |
| 2488 | 1-I | 9/16 | 0.562 | 14.3 | 3/5 | 0.6 | 15.2 | 5/16 | 0.312 | 7.9 | 2/5 | 0.4 | 10.2 | 7/20 | 0.35 | 8.9 | 1/31 | 0.032 | 0.8 | |
| 2520 | 1-I | 1/2 | 0.5 | 12.7 | 3/8 | 0.375 | 9.5 | 3/16 | 0.188 | 4.8 | 7/32 | 0.219 | 5.6 | 1/8 | 0.125 | 3.2 | 1/16 | 0.063 | 1.6 | |
| 2481 | 6-I | 7/16 | 0.438 | 11.1 | 51/64 | 0.797 | 20.2 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 5/32 | 0.156 | 4 | 3/64 | 0.047 | 1.2 | |
| 3319 | 7-I | 35/86 | 0.407 | 10.3 | 35/86 | 0.407 | 10.3 | 1/4 | 0.25 | 6.4 | 11/32 | 0.344 | 8.7 | 7/32 | 0.219 | 5.6 | 1/8 | 0.125 | 3.2 | |
| 2427 | 1-I | 7/16 | 0.438 | 11.1 | 5/16 | 0.313 | 7.9 | 1/4 | 0.25 | 6.4 | 11/32 | 0.344 | 8.7 | 1/16 | 0.063 | 1.6 | 1/32 | 0.031 | 0.8 | SPECIAL |
| 2605 | 6-I | 22/71 | 0.31 | 7.9 | 31/50 | 0.62 | 15.7 | 3/25 | 0.12 | 3 | 15/79 | 0.19 | 4.8 | 22/71 | 0.31 | 7.9 | 3/50 | 0.06 | 1.5 | SPECIAL |
| 3302 | 2-I | 1/2 | 0.5 | 12.7 | 13/32 | 0.406 | 10.3 | 1/4 | 0.25 | 6.4 | 5/16 | 0.312 | 7.9 | 13/76 | 0.171 | 4.3 | 4/87 | 0.046 | 1.2 | SPECIAL |
| 3303 | 6-I | 10/27 | 0.37 | 9.4 | 11/16 | 0.687 | 17.4 | 3/16 | 0.187 | 4.7 | 3/10 | 0.3 | 7.6 | 3/16 | 0.187 | 4.7 | 1/16 | 0.062 | 1.6 | SPECIAL |
| 3301 | 1-I | 1/2 | 0.5 | 12.7 | 12/35 | 0.343 | 8.7 | 3/16 | 0.187 | 4.7 | 1/4 | 0.25 | 6.4 | 4/43 | 0.093 | 2.4 | 1/16 | 0.062 | 1.6 | SPECIAL |
| 3307 | 6-I | 31/82 | 0.378 | 9.6 | 39/74 | 0.527 | 13.4 | 8/47 | 0.17 | 4.3 | 3/13 | 0.23 | 5.8 | 1/14 | 0.072 | 1.8 | 3/79 | 0.038 | 1 | SPECIAL |
| 3313 | 6-I | 1/2 | 0.5 | 12.7 | 7/10 | 0.7 | 17.8 | 1/4 | 0.25 | 6.4 | 7/20 | 0.35 | 8.9 | 1/4 | 0.25 | 6.4 | 1/8 | 0.125 | 3.2 | SPECIAL |
| 3340 | 6-I | 19/83 | 0.229 | 5.8 | 25/47 | 0.532 | 13.5 | 2/17 | 0.118 | 3 | 13/66 | 0.197 | 5 | 17/96 | 0.177 | 4.5 | 2/17 | 0.118 | 3 | SPECIAL |
| 3344 | 6-I | 66/67 | 0.985 | 25 | 1 7/24 | 1.292 | 32.8 | 10/41 | 0.244 | 6.2 | 10/27 | 0.37 | 9.4 | 21/41 | 0.512 | 13 | 1/8 | 0.126 | 3.2 | SPECIAL |
| 3347 | 1-I | 3/4 | 0.75 | 19.1 | 9/16 | 0.563 | 14.3 | 1/3 | 0.33 | 8.4 | 7/16 | 0.438 | 11.1 | 1/8 | 0.125 | 3.2 | 3/16 | 0.188 | 4.8 | SPECIAL |
| 3349 | 6-I | 8/29 | 0.276 | 7 | 86/91 | 0.945 | 24 | 8/51 | 0.157 | 4 | 21/89 | 0.236 | 6 | 17/48 | 0.354 | 9 | 3/38 | 0.079 | 2 | SPECIAL |
| 3382 | 2-I | 1/4 | 0.248 | 6.3 | 21/58 | 0.362 | 9.2 | 3/28 | 0.107 | 2.7 | 3/19 | 0.158 | 4 | 13/85 | 0.153 | 3.9 | 3/28 | 0.107 | 2.7 | SPECIAL |
| 284 | 5 | 5/16 | 0.313 | 7.9 | 9/32 | 0.281 | 7.1 | 1/8 | 0.125 | 3.2 | 3/16 | 0.188 | 4.8 | 1/8 | 0.125 | 3.2 | 1/32 | 0.031 | 0.8 | |
| 1561 | 5 | 1/2 | 0.5 | 12.7 | 11/32 | 0.344 | 8.7 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 5/32 | 0.156 | 4 | 1/16 | 0.063 | 1.6 | |
| 1178-1 | 1 | 1/2 | 0.5 | 12.7 | 11/32 | 0.344 | 8.7 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 3/32 | 0.094 | 2.4 | 1/16 | 0.063 | 1.6 | |
| 1178-2 | 1 | 1/2 | 0.5 | 12.7 | 13/32 | 0.406 | 10.3 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 5/32 | 0.156 | 4 | 1/16 | 0.063 | 1.6 | |
| 1178-3 | 1 | 1/2 | 0.5 | 12.7 | 21/32 | 0.656 | 16.7 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 13/32 | 0.406 | 10.3 | 1/16 | 0.063 | 1.6 | |
| 711 | 5 | 9/16 | 0.563 | 14.3 | 3/8 | 0.375 | 9.5 | 1/4 | 0.25 | 6.4 | 11/32 | 0.344 | 8.7 | 1/8 | 0.125 | 3.2 | 1/8 | 0.125 | 3.2 | |
| 1257 | 5 | 3/8 | 0.375 | 9.5 | 15/64 | 0.234 | 6 | 5/32 | 0.156 | 4 | 7/32 | 0.219 | 5.6 | 3/32 | 0.094 | 2.4 | 1/32 | 0.031 | 0.8 | |
| 785 | 1 | 5/16 | 0.313 | 7.9 | 17/64 | 0.266 | 6.7 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 1/8 | 0.125 | 3.2 | 3/64 | 0.047 | 1.2 | |
| 862 | 1 | 5/16 | 0.313 | 7.9 | 1/4 | 0.25 | 6.4 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 1/8 | 0.125 | 3.2 | 1/16 | 0.063 | 1.6 | |
| 716 | 1 | 7/16 | 0.438 | 11.1 | 17/64 | 0.266 | 6.7 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 3/32 | 0.094 | 2.4 | 3/64 | 0.047 | 1.2 | |
| 740 | 5 | 9/16 | 0.563 | 14.3 | 5/16 | 0.313 | 7.9 | 11/32 | 0.344 | 8.7 | 13/32 | 0.406 | 10.3 | 5/32 | 0.156 | 4 | 1/16 | 0.063 | 1.6 | |
| 1138 | 5 | 9/16 | 0.563 | 14.3 | 23/64 | 0.359 | 9.1 | 9/32 | 0.281 | 7.1 | 3/8 | 0.375 | 9.5 | 1/8 | 0.125 | 3.2 | 5/64 | 0.078 | 2 | |
| 759 | 1 | 7/16 | 0.438 | 11.1 | 23/64 | 0.359 | 9.1 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 3/16 | 0.188 | 4.8 | 3/64 | 0.047 | 1.2 | |
| 778 | 1 | 5/8 | 0.625 | 15.9 | 15/32 | 0.469 | 11.9 | 5/16 | 0.313 | 7.9 | 3/8 | 0.375 | 9.5 | 1/4 | 0.25 | 6.4 | 3/32 | 0.094 | 2.4 | |
| 6156 | 5 | 9/16 | 0.563 | 14.3 | 3/8 | 0.375 | 9.5 | 1/4 | 0.25 | 6.4 | 3/8 | 0.375 | 9.5 | 1/4 | 0.25 | 6.4 | 3/64 | 0.047 | 1.2 | |
| 1422 | 5 | 5/8 | 0.625 | 15.9 | 41/64 | 0.641 | 16.3 | 9/32 | 0.281 | 7.1 | 7/16 | 0.438 | 11.1 | 11/32 | 0.344 | 8.7 | 1/8 | 0.125 | 3.2 | |
| 734 | 5 | 1/2 | 0.5 | 12.7 | 7/16 | 0.438 | 11.1 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 1/4 | 0.25 | 6.4 | 1/16 | 0.063 | 1.6 | |
| 740-B | 5 | 9/16 | 0.563 | 14.3 | 15/32 | 0.469 | 11.9 | 11/32 | 0.344 | 8.7 | 13/32 | 0.406 | 10.3 | 5/16 | 0.313 | 7.9 | 1/16 | 0.063 | 1.6 | |
| 2250 | 5 | 1 | 1 | 25.4 | 11/16 | 0.688 | 17.5 | 1/2 | 0.5 | 12.7 | 11/16 | 0.688 | 17.5 | 5/16 | 0.313 | 7.9 | 3/16 | 0.188 | 4.8 | |
| 986 | 5 | 3/8 | 0.375 | 9.5 | 1/4 | 0.25 | 6.4 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 1/8 | 0.125 | 3.2 | 1/16 | 0.063 | 1.6 | |
| 289 | 7 | 3/8 | 0.375 | 9.5 | 7/32 | 0.219 | 5.6 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 1/16 | 0.063 | 1.6 | 1/16 | 0.063 | 1.6 | |
| 4123 | 1 | 3/8 | 0.375 | 9.5 | 11/32 | 0.344 | 8.7 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 11/64 | 0.172 | 4.4 | 1/16 | 0.063 | 1.6 | |
| 2433 | 7 | 1/2 | 0.5 | 12.7 | 9/64 | 0.141 | 3.6 | 13/64 | 0.203 | 5.2 | 19/64 | 0.297 | 7.5 | 3/64 | 0.047 | 1.2 | 3/64 | 0.047 | 1.2 | |
| 2033 | 4 | 1/2 | 0.5 | 12.7 | 25/64 | 0.391 | 9.9 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 15/64 | 0.234 | 6 | 1/32 | 0.031 | 0.8 | |
| 1439 | 2 | 3/8 | 0.375 | 9.5 | 3/8 | 0.375 | 9.5 | 3/16 | 0.188 | 4.8 | 1/4 | 0.25 | 6.4 | 1/8 | 0.125 | 3.2 | 1/32 | 0.031 | 0.8 | |
| 2328 | 2 | 1/2 | 0.5 | 12.7 | 13/32 | 0.406 | 10.3 | 1/4 | 0.25 | 6.4 | 5/16 | 0.313 | 7.9 | 11/64 | 0.172 | 4.4 | 3/64 | 0.047 | 1.2 | |
| 721 | 7 | 13/32 | 0.406 | 10.3 | 13/32 | 0.406 | 10.3 | 1/4 | 0.25 | 6.4 | 11/32 | 0.344 | 8.7 | 7/32 | 0.219 | 5.6 | 1/8 | 0.125 | 3.2 | |
| 693 | 4 | 1 | 1 | 25.4 | 7/16 | 0.438 | 11.1 | 1/2 | 0.5 | 12.7 | 5/8 | 0.625 | 15.9 | 3/16 | 0.188 | 4.8 | 1/8 | 0.125 | 3.2 | |
| 2101 | 4 | 49/64 | 0.766 | 19.4 | 1 | 1 | 25.4 | 3/8 | 0.375 | 9.5 | 1/2 | 0.5 | 12.7 | 3/4 | 0.75 | 19.1 | 1/8 | 0.125 | 3.2 | |
| 175 | 4 | 7/8 | 0.875 | 22.2 | 17/64 | 0.266 | 6.7 | 5/16 | 0.313 | 7.9 | 1/2 | 0.5 | 12.7 | 1/8 | 0.125 | 3.2 | 3/64 | 0.047 | 1.2 | |
| 3365 | 6-I | 8/21 | 0.381 | 9.7 | 14/15 | 0.933 | 23.7 | 14/67 | 0.209 | 5.3 | 2/7 | 0.286 | 7.3 | 26/81 | 0.321 | 8.2 | 11/94 | 0.117 | 3 | SPECIAL |
*Inserting hole in base and stem
**Special design-inverted "A" dimension, stepped "E" dimension
***Insert hole 3/16 Diam. X 11/16 deep
OR CONTACT US FOR A FREE QUOTE: (888) 696-7826
Don’t see what you’re looking for?
Check out our full catalog or contact us!
4273 2618 3161 2963 3058 3066 3169 3171 2682 2906 3188 3266 2935 3269 4081 4182 2668 4267 3070 3174* 2621 3062 3064 3069 3170 3265 4068 2944 4189 4266* 4288 4269 2659 1163 3056 4192* 1160 1164 2962 2902 2911 3061 3065 3072 3163 3164* 3166 3173* 3175 3176 3177 3178 3179* 3264* 4061 4062 4063 4065* 4066 4067 4071 4078 4083 4161 2938 4168 4184 4187 4193 4194* 4263 4268*** 2949 4271 2959 4279* 2640* 3189* 4283 2583 2649 306 1166 2607 2633 3074* 3167 4077 4085 4086 4162 4177 4188 4277 4286 2936 6112 2930* 2987 2918* 3182* 4089* 3380 2606 406 417 1161 1162 3063 3067* 3071 3165 3172 3181 3183* 3184* 3185 3263 4072 4076 4163 4171 4176 4178* 4270 4276 4280 4281 6113 2647 2969 3187 4285 3168 4262 4275 2644* 3073 4179 2679 307 2940 317 407 611 3068 4082 4084 4088 2931 4167 2661 4180 4185* 6111 3362 2675 3354 4247 4195 4165 3180 308 408 3075 4075 4181 4278 4287 2985 3351 4183* 4265 3186 2663 2688 4087 4186* 4191 2601 2671 1165 4264 4164 4166 4272* 4282 4079 4190 4284 2689 3170 3069 4066 4086 2432 2542 2488 2520 2481 3319 2427 2605 3302 3303 3301 3307 3313 3340 3344 3347 3349 3382 284 1561 -263703 -263672 -263644 711 1257 785 862 716 740 1138 759 778 6156 1422 734 740-B 2250 986 289 4123 2433 2033 1439 2328 721 693 2101 175 3365
