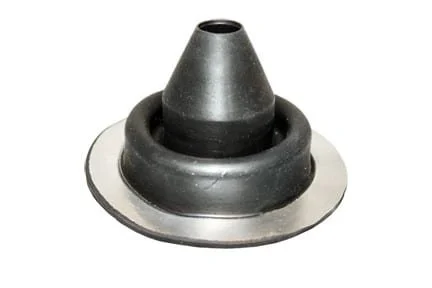

Solar Flash Master
Designed for solar applications for the metal roof industry.
Accommodates up to a 60º degree pitch. Available in black EPDM rubber or high temp red or gray silicone. Pipe Range: 3/4” to 1” (19 – 25mm). Base: 4” (101mm).
Description
Applications:
Specifically designed for solar applications for the metal roof industry
The pitch canal allows for maximum flexibility, easily accommodating up to a 60º degree pitch without affecting the flashing performance.
The simple round base flashing is available in black EPDM rubber or high temp red or gray silicone
The adaptable aluminum base is designed to mold to most panel configurations and roof pitches regardless of pipe location.
With a pre-cut hole for pipe sizes 3/4” to 1” (19 – 25mm) allowing for minimal on-site preparation and assembly.
Base: 4” (101mm)
20 Year Warranty
Specifications
ADVANCED OZONE RESISTANCE tested to:
EPDM: 70 hour @ 500 pphm
Silicone: 70 hour @ 500 pphm
HIGH TEMPERATURE RESISTANCE tested to:
Intermittent EPDM: +135°C (+275°F)
Intermittent Silicone: +260°C (+500°F)
Continuous EPDM: +100°C (+212°F)
Continuous Silicone: +225°C (+437°F)
LOW TEMPERATURE RESISTANCE tested to:
EPDM: – 55°C (-67°F)
Silicone: – 74°C (-101°F)
COMPRESSION SET Maximum:
EPDM: 25%
Silicone: 50%
| PART NO. | PIPE RANGE | BASE | COLOR |
|---|---|---|---|
| FM-SF201BA | 3/4” – 1” (19mm – 25mm) | 4” (101mm) | BLACK EPDM |
| FM-SF202RA | 3/4” – 1” (19mm – 25mm) | 4” (101mm) | GRAY SILICONE |
| FM-SF202GX | 3/4” – 1” (19mm – 25mm) | 4” (101mm) | RED SILICONE |
